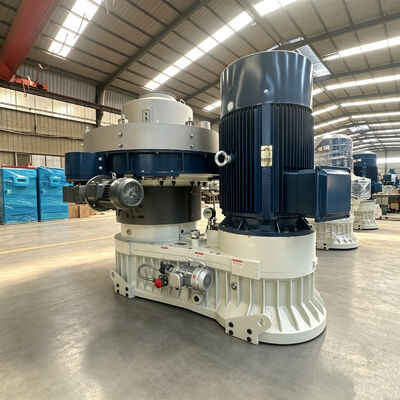

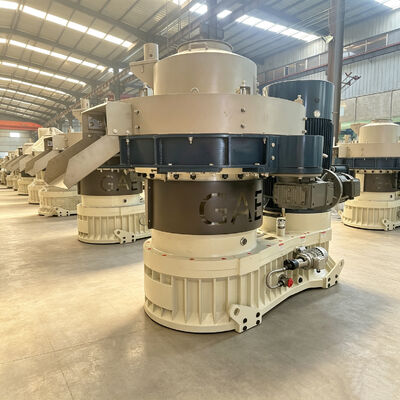

XGJ700 Vertical Ring Die Wood Pellet Machine High-Efficiency Biomass Pellet Mill for Industrial Fuel Production
| Dimension(L*W*H): | 2800x1300x2100mm | Production Capacity: | 1.2 – 1.8 Tons Per Hour (depending On Raw Material Density & Moisture) |
| Final Pellet Diameter: | 6 Mm, 8 Mm, 10 Mm, 12 Mm (customizable) | Capacity: | Based On Your Need |
| Spare Parts: | Die And Roller Shell | Roller Quantity: | 2pcs |
| Power: | 132kw/160kw | Dust collector: | Double Bag Dust Collector For Pellet Machine |
| High Light: | vertical ring die wood pellet machine,high-efficiency biomass pellet mill,industrial fuel wood pellet machine |
||
Specifically engineered for heavy-duty industrial applications, this vertical ring die pellet mill transforms forestry and agricultural waste—such as sawdust, wood chips, straw, and rice husks—into high-density, standardized biomass fuel pellets.
The primary function of the XGJ700 is the high-pressure extrusion of raw materials through precision-engineered die holes. The process involves high temperature and pressure, which activates the natural lignin in the wood, acting as a binder to form solid, glossy pellets without the need for chemical additives.
Commonly Processed Materials:
- Hardwoods & Softwoods: Pine, oak, birch, and eucalyptus sawdust or shavings.
- Agricultural Residue: Corn stalks, wheat straw, peanut shells, and sunflower husks.
- Industrial Waste: Pallet scraps, furniture factory waste, and construction timber.
| Parameter Name | Specification |
|---|---|
| Model | XGJ700 |
| Type | Vertical Ring Die Wood Pellet Machine |
| Production Capacity | 1.2-1.8 T/H (tons per hour) |
| Main Motor Power | 160KW |
| Pellet Diameter | 6mm, 8mm, 10mm, 12mm (adjustable) |
| Machine Weight | 5.8T |
| Overall Dimension (L*W*H) | 2800x1300x2100mm |
| Control Mode | Electric Cabinet Control |
| Certification | CE, ISO |
Maintenance and After-Sales Support:
We understand that downtime is the enemy of profitability. The XGJ700 is designed with modular components for quick replacement. Our global support team provides:
- Detailed installation guides and video tutorials.
- Wear-parts inventory (Dies, Rollers, Bearings) for rapid shipping.
- Remote technical diagnostics to ensure your production line stays active.
