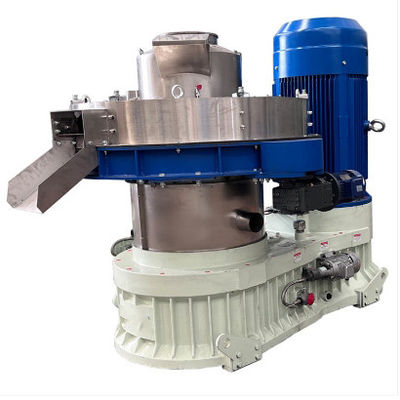

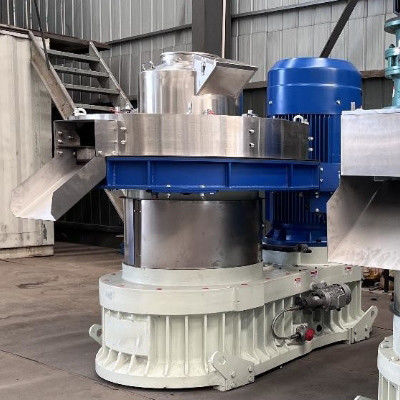

1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet

I'm Online Chat Now

1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet

1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet
1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet 1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet

Large Image :  1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet

Product Details:
Place of Origin: Shandong, China
Brand Name: Jinzhao
Model Number: XGJ560
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Price: based on model
Packaging Details: suitable packing for sea freight
Delivery Time: 7 days
Payment Terms: T/T 30% down payment, the balance to be paid before shipment.
Supply Ability: 100set/year

1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet

Description
Electrical Components: CHNT/DELIXI Or Customized Based On Your Need Pellet Mill Type: Vertical Ring Die Pellet Machine
Main Power Of Pellet Machine: 132kw Voltage: Customized
Pellet Machine Dimension: 2500*1600*1900 Electrical Motor Warranty: 1 Year
Weight: 5300kg Machine Color: Can Be Customized Based On Your Need
Highlight:

12mm Die Pellet Mill

,

2000kg/H Die Pellet Mill

,

Vertical Biomass Pellet Machine

1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet

Product Description:

The 1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet

The vertical ring die pellet machine is a specialized equipment used for pressing various types of fibers into fuel pellets for burning. This machine has a unique design that ensures stable operation, high success rate in pellet formation, and a high output.

Main Structure:
Main parts of 1500-2000kg/H Output Vertical Ring Die Pellet Mill 132kw motor
Gears reducer

Main Shaft Bearing Chamber

Pelletizing Room (consisting of the ring die and roller assembly)

The auxiliary parts of the pellet machine include a grease pump, automatic lubricating system, air-cooled radiator, and a fan blower with a bag collector etc


1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet Features:

Vertical Ring Die Pellet Mill Features

The Vertical Ring Die Pellet Mill has several key features that make it a top choice for pellet production:

  • The vertical feeding system allows for free and even material distribution without any arching or clumping.
  • The rotating pressure wheel and centrifugal force ensure an even and high forming rate.
  • The fixed mold and dual-layer design allow for stable operation and the production of two different pellet sizes.
  • The equipment is equipped with two independent lubrication systems for long-term safe and stable operation.
  • The air-cooled dust removal system ensures effective production while also being energy efficient and environmentally friendly.
Applicable Raw Materials

The Vertical Ring Die Pellet Mill is suitable for a wide range of raw materials, including:

  • Wood sawdust
  • Wood shavings
  • Wood scraps
  • Furniture factory scraps
  • Rice husks
  • Sunflower husks
  • Peanut husks
  • Peanut shells
  • Crop straws
  • Ash
  • Other chemical raw materials

Pellet Machine Gear Box

The gear box used in our pellet machine is designed with three-stage gear deceleration. This unique design allows it to have a carrying capacity 5 times larger than the old model, while also greatly increasing its service life. Furthermore, the gear box is made by a five-axis gantry CNC machining center, ensuring the quality and precision of each component.

Our pellet machine gear box is connected directly to a Chinese standard motor through a coupling. This not only increases the kinetic energy conversion rate, but also improves production efficiency. In addition, it makes maintenance much more convenient. We only cooperate with well-known motor brands, guaranteeing the best performance for our customers.

Main Shaft

The main shaft of our pellet machine is made of 45# steel, ensuring its strong and durable nature. To further increase its hardness and service life, the main shaft undergoes precision casting, quenching, and tempering heat treatment after rough machining.

Disc Discharging Shell

The disc discharging shell is made of stainless steel, providing high strength and corrosion resistance. This helps to prevent steam corrosion and prolongs the lifetime of the pellet machine.

Lubrication Pump

Our pellet machine is equipped with two lubricating systems – a grease pump and a circulating lubricating oil pump. The grease pump is responsible for lubricating the two rollers and the material dial part, while the circulating lubricating oil pump takes care of the main shaft bearings and gear box.

The gear box lubrication pump also comes with flow detection and over-pressure protection, effectively preventing equipment failures caused by poor lubrication. Furthermore, it has a cooling fan that allows it to cool down the lubricating oil during operation, ensuring long-term and efficient operation of the pellet machine.



1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet Customization:

Vertical Ring Die Pellet Mill - Jinzhao XGJ560
Customized Service for Your Biomass Pellet Needs

Brand Name: Jinzhao

Model Number: XGJ560

Place of Origin: Shandong, China

Minimum Order Quantity: 1sets

Price: Based on Model

Packaging Details: Suitable packing for sea freight

Delivery Time: 7 days

Payment Terms: T/T 30% down payment, the balance to be paid before shipment

Supply Ability: 100 sets/year

Suitable Materials: Wood Sawdust, Rice Husk, Peanut Shell, EFB Firbre, Grass Etc

Main Power of Pellet Machine: 132kw

Air-Cooled Radiator: Efficiently Cools Down Gear Oil in the Pellet Machine

Pellet Diameter: 6-12mm

Grease Pump: Reliably Lubricates Roller Bearings of Pellet Machine



1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet  FAQ:

  • Q: What is the brand name of this product?
  • A: The brand name of this product is Jinzhao.
  • Q: What is the model number of this product?
  • A: The model number of this product is XGJ560.
  • Q: Where is this product manufactured?
  • A: This product is manufactured in Shandong, China.
  • Q: What is the minimum order quantity for this product?
  • A: The minimum order quantity for this product is 1 set.
  • Q: How much does this product cost?
  • A: The price of this product is based on the model.
  • Q: How is this product packaged for shipping?
  • A: This product is packaged in suitable packing for sea freight.
  • Q: How long is the delivery time for this product?
  • A: The delivery time for this product is 7 days.
  • Q: What are the accepted payment terms for this product?
  • A: The accepted payment terms for this product are T/T 30% down payment, with the balance to be paid before shipment.
  • Q: What is the supply ability of this product?
  • A: The supply ability of this product is 100 sets per year.
  • 1500-2000kg/H Output Vertical Ring Die Pellet Mill Perfect For Pressing Diameter 6-12mm Pellet 0
