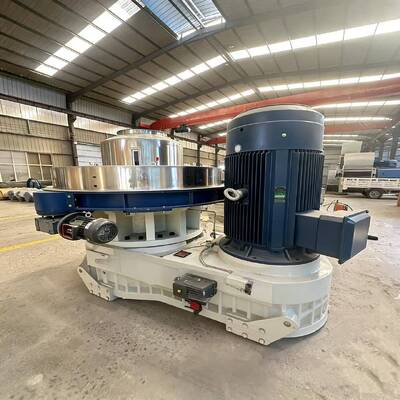

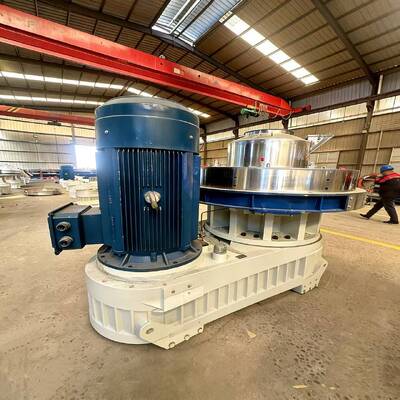

XGJ8500 Wood Pellet Machine | Industrial Biomass Pellet Press for High-Capacity Production
| Control System: | PLC | Voltage: | 380V/50HZ/3Phase |
| Capacity: | 2.5-3.5t/h | Type: | Pellet Machine |
| Feeding System: | Automatic Feeding System | Cooling System: | Bag Dust Collector |
| Product Name: | Biomass Pellet Machine | Power: | 220kw |
| High Light: | industrial wood pellet machine,high-capacity biomass pellet press,biomass pellet machine with warranty |
||
The XGJ8500 Wood Pellet Machine is a heavy-duty, industrial-grade pellet press designed for continuous, high-volume production of biomass pellets. Unlike small-scale flat-die pelletizers, the XGJ8500 features a large-diameter ring die and a forced-feeding system, allowing it to process raw materials with moisture content between 12% and 18% efficiently.
This machine is built for 24/7 operation in demanding environments such as wood processing plants, feed mills, and biomass power stations. Its core components – the ring die and rollers – are made from high-alloy wear-resistant steel, heat-treated for extended service life .
- High Output, Low Energy Consumption – Produces 2–3 tons of wood pellets per hour with a power-efficient 220kW motor, lowering your cost per ton.
- Long Die & Roller Life – Special alloy steel + vacuum heat treatment ensures 30% longer wear life than standard mills.
- Consistent Pellet Quality – The heavy-duty gearbox and three-roller design provide uniform compression, resulting in high-density pellets that do not break during bagging or shipping.
- Easy Maintenance – Large inspection door and quick-release roller assembly reduce downtime.
- Multi-Material Capability – Processes not only wood but also rice husks, peanut shells, straw, palm kernel shells, and even animal bedding materials (e.g., alfalfa, corn stalks).
In this table, four kinds of models of the wood pellet making equipment have been introduced.
| Model of wood pellet making equipment | Main Power(KW) | Capacity(t/h) | Weight(T) | Dimension(mm) |
| XGJ560 | 90 | 1-1.5 | 4.6 | 2300*1300*1800 |
| XGJ560-6th | 132 | 1.5-2 | 4.8 | 2300*1300*1850 |
| XGJ560-7th | 132 | 1.5-2 | 5 | 2400*1250*1900 |
| XGJ560-8th | 132 | 1.5-2 | 5.1 | 2520*1500*1770 |
| XGJ850 | 220 | 2.3-3.5 | 13 | 3000*1600*2300 |
- Biomass Fuel Pellets (Heating & Power Generation)
- Industrial boilers
- District heating systems
- Coal-fired power plant co-firing
- Residential pellet stoves (bagged)
- Animal Bedding Pellets
- Horse stables (absorbent, low-dust pellets)
- Poultry farms (litter material)
- Pet bedding (small animal enclosures)
- Feed Pellets for Livestock
- Cattle, sheep, goats (alfalfa/straw pellets)
- Rabbits, poultry (mixed grain pellets)
- Waste-to-Value Processing
- Sawmills (convert sawdust into revenue)
- Agricultural cooperatives (use crop residues)
- Municipal green waste facilities
Q. What is your payment term of wood pellet making equipment?
A: T/T 30% down payment, balance to be paid before shipment.
Q: What is your main market of wood pellet making equipment?
A: Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q: What is your delivery time of wood pellet making equipment?
A: Unit pellet machine can be done well within 10 working days. Complete line will be done with 15-50 working days, the specific time depends on the amount of equipment you purchased.
Q: What documents you can offer of wood pellet making equipment?
A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.
Q: If machine have some quality problem, your solutions of wood pellet making equipment?
A: If finally confirm our side machine quality problem within guarantee time, we will responsible for it. Change all the parts for free.
