Product Details:
|
Gear Warranty: | 2 Years | Pellet Machine Dimension: | 2500*1600*1900 |
---|---|---|---|
Weight: | 5300kg | Output: | 1500-2000kg/h |
Air-cooled Radiator: | Cool Down The Gear Oil In The Pellet Machine | Control System: | Bypass Soft Starter Electrical Control Box |
Automatic Lubricating System: | Lubricating Main Shaft Bearing And Gears Of Pellet Machine | Grease Pump: | Lubricating Roller Bearings Of Pellet Machine |
Highlight: | Air-Cooled Radiator Wood Pellet Machine,Biomass Wood Pellet Making Machine |

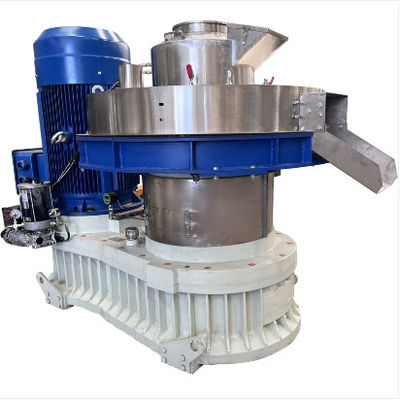

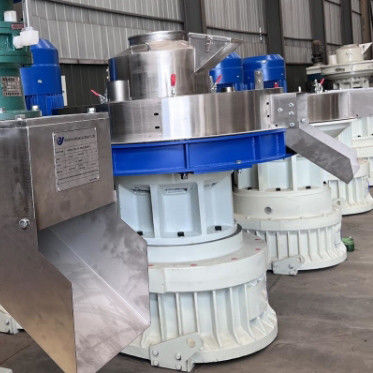

The vertical ring die pellet machine is a specialized equipment used for compressing various types of fibers into pellets, which can be used as fuel for burning. Its structure is designed for optimal performance, with stable operation, high efficiency in forming pellets, and a high output. The machine is primarily composed of the power source, gear reducer, main shaft bearing chamber, and the pelletizing room, which consists of the essential ring die and roller assembly. Other important components include the grease pump, automatic lubricating system, air-cooled radiator, as well as the fan blower and bag collector.
Applicable Raw Materials: |
Wood: sawdust, shavings, scraps from furniture factories; |
Alternative plant materials: rice husks, sunflower husks, peanut husks and shells, various crop straws; |
Chemical raw materials: iron oxide fines. |
The gear box of our pellet machine is designed and manufactured with high quality materials and advanced technology.
The gear box adopts a three-stage gear deceleration system, increasing its carrying capacity by 5 times compared to our previous models. This also significantly extends its service life.
Our pellet machine gear box is produced with a five axis gantry CNC machining center, ensuring the highest level of precision and quality.
It is connected to a Chinese standard motor by direct coupling, increasing energy conversion rate and improving production efficiency. This also makes maintenance more convenient. The motors we use are well-known brands within the domestic market.
The main shaft of our pellet machine is made of 45# steel, ensuring durability and strength.
In order to enhance the hardness and service life of the shaft, it undergoes precision casting, quenching, and tempering heat treatment after rough machining.
The disc discharging shell of our pellet machine is made of high quality stainless steel.
This material provides high strength and corrosion resistance, reducing the risk of steam corrosion and extending the overall lifespan of the machine.
Our pellet machine is equipped with two lubrication systems: a grease pump and a circulating lubricating oil pump.
The grease pump is responsible for lubricating the two rollers and the material dial, while the circulating lubricating oil pump lubricates the main shaft bearings and gearbox. The gear box lubrication pump also has advanced features such as flow detection and over-pressure protection, which effectively prevent equipment failures due to inadequate lubrication.
In addition, our gear box lubrication pump is accompanied by a cooling fan, allowing it to cool down the lubricating oil while the machine is running. This helps to prolong the overall operation of the pellet machine.
Biomass Pellet Machine by Jinzhao is a highly efficient and reliable wood pellet making equipment designed to produce biomass fuel. Our machine is perfect for individuals and businesses looking to produce their own biomass fuel for a variety of purposes, such as heating, cooking, and powering machinery.
With a strong focus on environmental protection and energy-saving, our Biomass Pellet Machine is the perfect solution for those looking to switch to renewable energy sources. Our machine is capable of producing high-quality wood pellets from a variety of raw materials, including wood chips, sawdust, straw, and other agricultural and forestry wastes.
The XGJ560 model is one of our top-selling machines that can produce up to 1.5-1 tons of wood pellets per hour, making it suitable for both small and large-scale production. The machine is also equipped with an air-cooled radiator that ensures the gear oil in the pellet machine remains at a stable temperature, prolonging the lifespan of the machine.
At Jinzhao, we understand the importance of quality and reliability, which is why our machines come with a 1-year warranty for the electrical motor. We also offer a wide range of spare parts and maintenance services to ensure your machine runs smoothly for years to come.
Our Biomass Pellet Machine is designed with user-friendliness in mind, with a compact and easy-to-operate design. It also has a low energy consumption rate, making it a cost-effective option for biomass fuel production. With a weight of 5300kg and dimensions of 2500*1600*1900, our machine is easy to transport and can be used in various locations.
In conclusion, Jinzhao Biomass Pellet Machine is the perfect choice for anyone looking to produce biomass fuel. With its high efficiency, environmental protection features, and user-friendly design, our machine is the ideal solution for all your biomass pellet production needs.
Customized Service for Jinzhao Biomass Pellet Machine XGJ560
Brand Name: Jinzhao
Model Number: XGJ560
Place of Origin: Shandong, China
Minimum Order Quantity: 1 sets
Price: Based on model
Packaging Details: Suitable packing for sea freight
Delivery Time: 7 days
Payment Terms: T/T 30% down payment, the balance to be paid before shipment.
Supply Ability: 100 sets/year
Machine Color: Can be customized based on your need
Production Time: 3 working days
Main Power of Pellet Machine: 132kw
Suitable Materials: Wood Sawdust, Rice Husk, Peanut Shell, EFB Firbre, Grass etc
Air-cooled Radiator: Cool down the gear oil in the pellet machine
Key Words: Vertical Ring Die Pellet Mill, Wood Pellet Making Machine, Wood Pellet Making Machine Price, Customized Service
|
