PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine

I'm Online Chat Now

PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine

PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine
PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine

Large Image :  PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine

Product Details:
Place of Origin: Shandong, China
Brand Name: Jinzhao
Certification: CE ISO
Model Number: XGJ560-8th
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Packaging Details: suitable packing for sea freight
Delivery Time: 7 days
Payment Terms: T/T 30% down payment, the balance to be paid before shipment.
Supply Ability: 15set/month

PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine

Description
Warranty: 1 Year Control System: PLC
Type: Pellet Machine Voltage: 380V/50HZ/3Phase
Screening System: Vibrating Screen Product Name: Biomass Pellet Machine
Weight: 5.1T Capacity: 1.5-2t/h
Highlight:

PLC Control Biomass Pellet Machine

,

Biomass Pellet Machine 1.5t/H

,

2t/H Straw Pellet Press Machine

PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine

PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine

Product Description:

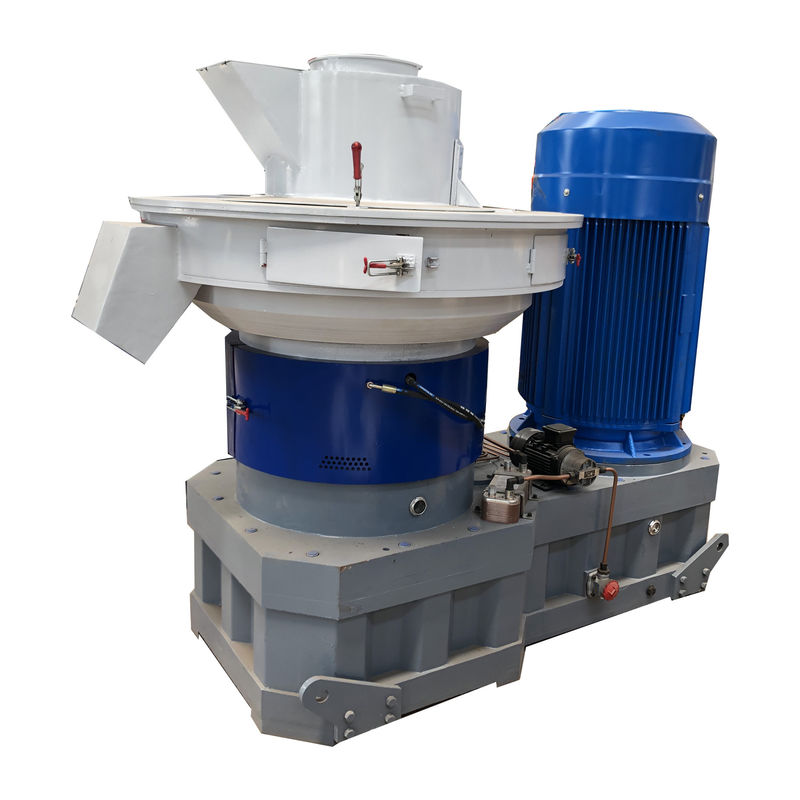

The vertical ring die pellet machine is a very special machine with a series of great features. It is specifically designed for biomass fuel granulation as well as coarse fiber material granulation. It boasts a reasonable structure and is highly efficient, with an output that is consistently high.

The machine is composed of four main parts: the power part, the transmission part, the granulation part (with the core part being its mould and pressure wheel), and the automatic lubrication part as well as the air-cooled dust removal part.



PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine  Features:

Pellet Machines' Gear Box

The gear box adopts three-stage gear deceleration, its carrying capacity is five times larger than that of the old model, and its service life is super long. This gear box is made by five axis gantry CNC machining center, to maintain the quality and Precision of the gearbox. Moreover, the gearbox is connected with Chinese standard motor by coupling directly, so as to increase the kinetic energy conversion rate and improve the production efficiency. Maintenance will also become more convenient. The motor brands we have cooperated with are all well-known in domestic.

About the Main Shaft

The main shaft is made of 45# steel. To ensure the hardness and service life of the shaft, it's been processed by precision casting, quenching and tempering heat treatment after rough machining.

New Kick-out System

The driving motor of the feeding system adopts a hard tooth surface reducer, which provides a longer life and more stable operation. The large gear and the small gear are separated from the pelleting chamber, and the material dial part is externally set, solving the problem that the dial material is easily corroded by high temperature steam. In the material shifting cover, except for the material shifting turntable, other non-moving parts which come into contact with materials and steam are all made of stainless steel, so it's able to address the problem of metal corrosion. Additionally, the disc type discharging pellets make the discharge smoother, and the forming degree is better.

Disc Discharging Shell

The disc discharging shell is produced by stainless steel, which has higher strength and corrosion resistance than the past type, and thus, the steam corrosion problem can be reduced. The shell also has a longer life time.

Lubrication Pump

The pellet machine has two sets lubricating system, a grease pump and a circulating lubricating oil pump. The grease pump mainly lubricates two rollers in pellet machine. The circulating lubricating oil pump mainly lubricates the pellet machine main shaft bearings and gearbox, as well as the material dial part. The gear box lubrication pump is equipped with flow detection and over-pressure protection, which can prevent equipment failures caused by poor lubrication effectively. Besides, a cooling fan is set for the gear box lubrication pump, which is able to cool down the lubricating oil without stopping the machine, so as to ensure long-term operation.

Ring Die

There are two kind of die: one is made of alloy steel, and the other is made of stainless steel material. Both of them are quenched in a vacuum furnace and have a uniform hardness, no breakage, and super wear-resistant; the die holes are processed by high-speed gun drilling, and their arrangement is even, while the inside of the holes is smooth. Up and down all can be used.

Roller Shell

The roller shell has three types: one type is surface carbonizing treatment trough, the second type is sealing groove roller shell, and the third type is made of super wear-resistant alloy welding process by robot. The sand cutting trough it produces is durable.



Biomass Pellet Machine 1.5-2t/h with Automatic Lubrication System Technical Parameters:

Model of PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine Main Power(KW) Capacity(t/h) Weight(T) Dimension(mm)
XGJ560 90 1-1.5 4.6 2300*1300*1800
XGJ560-6th 132 1.5-2 4.8 2300*1300*1850
XGJ560-7th 132 1.5-2 5 2400*1250*1900
XGJ560-8th 132 1.5-2 5.1 2520*1500*1770
XGJ850 220 2.3-3.5 13 3000*1600*2300

PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine

PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine



PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine Packing and Shipping:



PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine Packaging and Shipping for Biomass Pellet Machine:

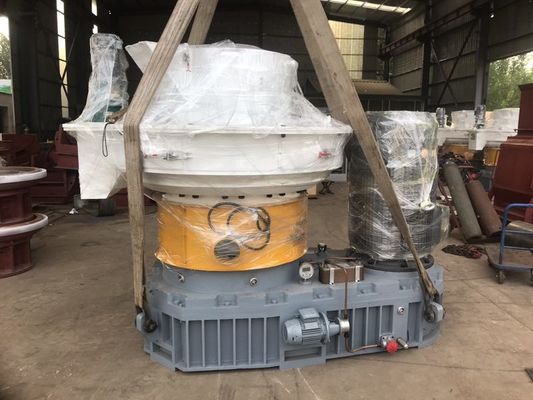

The Biomass Pellet Machine will be carefully packaged in a wooden case, which will be lined with foam to prevent damage during shipping. The cases will be securely sealed with screws and tape to ensure the safety and integrity of the product. The product will then be shipped either by land, sea or air depending on the customer's preference.



PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine FAQ:



Q1. What is your payment term PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine?
A1: T/T 30% down payment, the balance to be paid before shipment.

Q2: What is your main market PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine?
A2: Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia

Q3: What is your delivery time PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine?
A3: Unit pellet machine can be done well within 7 working days. Complete line will be done with 15-50 working days, the specific time depends on the amount of equipment you purchased.

Q4: What documents you can offer PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine?
A4: Invoice, packing list, contract for customs declaration, certificate of origin, Form E etc, If client need other documents, specifications, please confirm with service staff.

Q5: If machine have some quality problem, your solutions PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine?
A5: If finally confirm our side machine quality problem within guarantee time, we will responsible for it. Change all the parts for free.

Q6: When can I get the quotation  PLC Control Biomass Pellet Machine 1.5-2t/H Straw Pellet Press Machine?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
