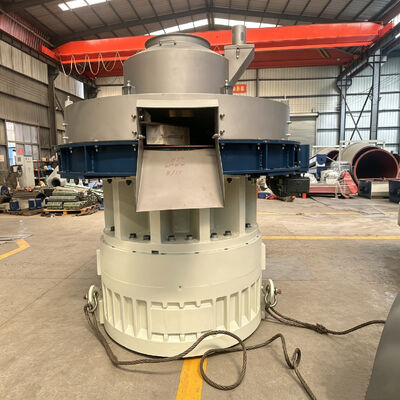

Wood Pellet Machine 220kW Industrial Pellet Press 2.5-3.5 t/h for Large-Scale Biomass Production
| Dimension(L*W*H): | 3200 X 1500 X 2600 | Production Capacity: | 3.5 – 5.5tons Per Hour (depending On Raw Material Density & Moisture) |
| Final Pellet Diameter: | 4 Mm – 12 Mm (customizable) | Capacity: | Based On Your Need |
| Spare Parts: | Die And Roller Shell | Roller Quantity: | 2pcs |
| Power: | 250kw | Dust collector: | Double Bag Dust Collector For Pellet Machine |
| High Light: | industrial wood pellet machine 220kW,large-scale biomass pellet press,high-capacity wood pellet press 3.5 t/h |
||
The XGJ850 Wood Pellet Machine is an industrial-grade ring die pellet mill designed for high-volume wood processing plants, biomass fuel production facilities, and large-scale animal feed operations. Built to handle demanding 24/7 production environments, this machine transforms raw wood chips, sawdust, shavings, and other biomass residues into high-density, premium quality pellets.
Wood Biomass Pelleting – Converts dry or slightly moist sawdust, shavings, wood chips, and bark into Bioenergy .
Agricultural Residue Processing – Pellets corn stalks, straw, peanut shells, sunflower husks, and coffee grounds (requires pre-grinding).
Animal Feed Production – Compresses mixed grain, alfalfa, and additive formulas into uniform, easy-to-store feed pellets.
Fertilizer Pelletizing – Suitable for organic fertilizer granules from poultry litter or compost.
| Item | Technical Specification |
|---|---|
| Product Model | XGJ850 |
| Rated Main Power | 220KW |
| Production Capacity | 2.5-3.5 Ton/Hour |
| Overall Dimension (L*W*H) | 3000*1600*2300 (mm) |
| Weight (T) | 8.5 |
| Applicable Raw Materials | Wood sawdust, wood chips, straw, rice husk, palm fiber, crop residues |
| Pellet Diameter | 4-12mm (Customizable) |
| Transmission Mode | Reducer + Elastic Coupling |
| Lubrication System | Automatic Circulating Cooling Lubrication |
| Working Mode | Vertical Ring Die Continuous Pressing |
- Lower Cost Per Ton
Thanks to the 220kW direct-drive structure, energy consumption per ton is significantly reduced compared to smaller or gear-driven models. - Faster ROI with Higher Throughput
At 2.5–3.5 t/h, you reach monthly production targets faster. Many competitors in this price range max out at 2 t/h. - Built for 24/7 Industrial Use
Double-layer roller bearings + forced cooling system – the XGJ850 does not require a cool-down break after 2 hours of operation. - Easy Maintenance & Low Wear Parts Cost
Ring die and rollers can be replaced within 90 minutes by two technicians. Common spare parts are globally compatible. - Safety & Environmental Compliance
Fully enclosed casing reduces dust and noise. Equipped with emergency stop and vibration sensors — meets CE safety guidelines.
