Product Details:
|
| Mould: | Ring Die | Power: | 90kw,132kw,160kw |
|---|---|---|---|
| Output (kg/h): | 1500 - 2000 Kg/h | Capacity: | Based On Your Need |
| Production Time: | 7working Days | Spare Parts: | Die And Roller Shell |

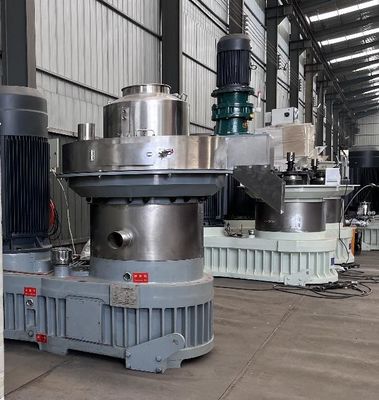

The biomass vertical ring die pellet machine is a special equipment for biomass fuel pelletizing and coarse fiber material granulation. It has a reasonable structure, stable operation, high forming rate and high output. Main structure: power part, transmission part, granulation part (the core part is mould and pressure wheel), automatic lubrication part, air-cooled dust removal part.
① The material is fed vertically, and the material is fed in freely, without arching and easy to dissipate;
② The pressure wheel rotates, the material is centrifuged, the distribution is even, and the forming rate is high;
③ The mold is fixed, the equipment runs more stable, and it is divided into upper and lower layers, and two specifications can be made;
④ There are two independent lubrication systems for the transmission part and the pressing part, ensuring safe and stable operation for a long time.
⑤ Equipped with air-cooled dust removal, long-term operation, effective production, energy saving and environmental protection.
| Model of pellet mill | Main Power(KW) | Capacity(t/h) | Weight(T) | Dimension(mm) |
| XGJ560A | 90 | 1-1.5 | 4.6 | 2300*1300*1800 |
| XGJ560-6th | 132 | 1.5-2 | 4.8 | 2300*1300*1850 |
| XGJ560-7th | 132 | 1.5-2 | 5 | 2400*1250*1900 |
| XGJ560-8th | 132 | 1.5-2 | 5.1 | 2520*1500*1770 |
Applicable raw materials:
Sawdust, sawdust, shavings, wood scraps, furniture factory scraps, rice husks, sunflower husks, peanut husks and other wood scraps, branches, stems, bark and other wood scraps; various crop straws; rubber , Cement, ash and other chemical raw materials.
Pre-sale service
1. Expertise and experience of our team help each client to select their most suitable pellet machine.
2. Legal logo printing or design are available.
3. Quality + Good Price + Quick Response + Reliable Service is what we are doing best to offer you.
After you choose:
1. Your machine order can be arranged to produce at the first time.
2. Empty loading running test once machine finished production.
3. Every equipment will be checked carefully before packing, take photos and video for you.
4. Shipment booking service is supported.
5. Supervise the whole process of loading.
6. Customs clearance documents will be supplied in time.
After-sale service
1. 24hours on-line service, guide you to install and operate the machines your ordered.
2. Video communication guide your local workers doing installation, commissioning and normal maintenance.
3. Engineer technician can be available to your factory to on-site guide installation, training for biomass pellet machine line and other big machines.
4. Spare parts and accessories will be supplied with good price and delivered in 7 working days.
Q1. What is your payment term?
A1: T/T 30% down payment, the balance to be paid before shipment.
Q2: What is your main market?
A2: Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q3: What is your delivery time?
A3: Unit pellet machine can be done well within 7 working days. Complete line will be done with 15-50 working days, the specific time depends on the amount of equipment you purchased.
Q4: What documents you can offer?
A4: Invoice, packing list, contract for customs declaration, certificate of origin, Form E etc, If client need other documents, specifications, please confirm with service staff.
Q5: If machine have some quality problem, your solutions?
A5: If finally confirm our side machine quality problem within guarantee time, we will responsible for it. Change all the parts for free.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
