Product Details:
Place of Origin: Shandong, China
Brand Name: Jinzhao
Model Number: GHG
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: suitable packing for sea freight
Delivery Time: 10-30 working days
Payment Terms: T/T

Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer

Description
Material: Stainless Steel/Carbon Steel Control System: Manual/Automatic
Heating Method: Direct/Indirect Capacity: 1000kg/h
Power: 4-37kw Warranty: 1 Year
Fuel: Gas/Diesel/Electricity Product Name: Wood Sawdust Dryer
Highlight:

Manual Control System Wood Sawdust Dryer

,

Wood Sawdust Dryer 1000kg/H

,

1000kg/H Rotary Dryer Shavings Dryer

Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer

Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer Product Description:

Wet raw material is transported into the Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer by belt conveyor or bucket elevator. Since the cylinder is inclined, the material slowly moves in the axial direction from higher end to low end. The lifting plate continuously scatters and moves down the material, meanwhile making the material and the high-temperature flue gas exchange heat until it meets the required dryness; after which the dried material is discharged from the output opening by a discharging device. The waste gas from the dryer end is discharged by cyclone.

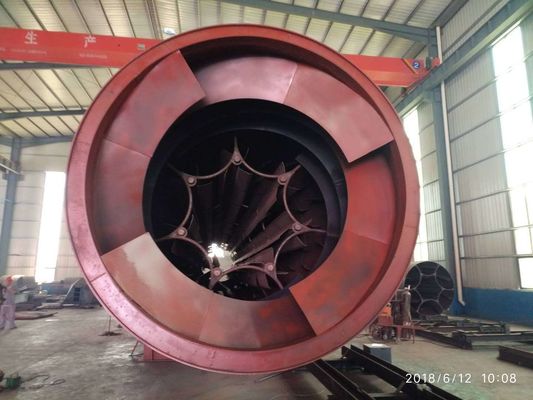

The dryer is equipped with a separate heating furnace, input port, rotating cylinder, delivery pipe, dust collector and output port. Heat air is sent into the rotating cylinder to full contact with materials delivered by a conveyor. Being transported and scattered by high-speed hot air, the outer moisture of the material is evaporated and the dust is discharged by cyclone. The rotary drying cylinder is equipped with a combination device of circumferential lifting plates at various angles so that it increases the heat exchange rate and shortens the drying time.

GHG dryer is applied to many industries including biomass fuel, wood pellet fuel, sawdust briquette, farming, etc. It can efficiently dry wood powder, wood shavings, sawdust, wood chips, straws, grass and other materials. The driving device is driven by an electric motor, and it can adjust the rotating speed according to demand to achieve a stepless speed adjustment.



Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer Features:

  • Product Name: Wood Sawdust Dryer
  • Power: 4-37kw
  • Capacity: 1000kg/h
  • Control System: Manual/Automatic
  • Fuel: Gas/Diesel/Electricity
  • Special Feature: Industrial Rotary Dryer, Drum Rotary Dryer


Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer Technical Parameters:

Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer Model Selection

GHG electric heater model selection is based on power and evaporation capacity.

The first model, GHGΦ1.0x12x1, has a power of 4kw and evaporation capacity range of 0.1-0.2t/h.

The second model, GHGΦ1.2x12x1, has a power of 5.5kw and a evaporation capacity range of 0.2-0.45t/h.

The third model, GHGΦ1.5x15x1, has a power of 11kw and evaporation capacity range of 0.5-0.7t/h.

The fourth model, GHGΦ1.6x18x1, has a power of 11kw and evaporation capacity range of 0.7-1.1t/h.

The fifth model, GHGΦ1.8x20x1, has a power of 15kw and evaporation capacity range of 1-1.3t/h.

The sixth model, GHGΦ1.8x24x1, has a power of 18.5kw and evaporation capacity range of 1.2-1.5t/h.

The seventh model, GHGΦ2.0x24x1, has a power of 18.5kw and evaporation capacity range of 1.5-2.2t/h.

The eighth model, GHGΦ2.2x24x1, has a power of 22kw and evaporation capacity range of 1.7-2.5t/h.

The ninth model, GHGΦ2.5x24x1, has a power of 22kw and evaporation capacity range of 2.5-3.2t/h.

The tenth model, GHGΦ2.8x24x1, has a power of 22kw and evaporation capacity range of 3-4t/h.

The eleventh model, GHGΦ3.0x24x1, has a power of 30kw and evaporation capacity range of 3.5-4.5t/h.

The twelveth model, GHGΦ3.5x24x1, has a power of 37kw and evaporation capacity range of 4.5-6.5t/h.



Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer Applications:

The Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer is a highly efficient industrial rotary dryer that uses gas, diesel, or electricity to dry wood sawdust in a matter of minutes. It is made of stainless steel or carbon steel for long-term durability and features a manual or automatic control system for easy operation. This industrial rotary dryer is designed to be a reliable and cost-effective rotary drum dryer for wood sawdust, and it has a one-year warranty. It is perfect for any industry that needs to quickly and efficiently dry wood sawdust, such as the wood-processing, furniture-making, and paper-making industries.

The Jinzhao GHG Wood Sawdust Dryer utilizes a rotating drum to evenly dry wood sawdust, ensuring that the finished product is completely dry. The drum is made from high-quality materials, such as stainless steel or carbon steel, and is designed to be highly energy-efficient. The dryer is also equipped with a comprehensive control system, allowing operators to closely monitor the drying process and adjust settings to achieve the desired results.

With the Jinzhao GHG Wood Sawdust Dryer, you can easily and quickly dry wood sawdust in a cost-effective way. It is perfect for any industry that needs a reliable and efficient rotary drum dryer for wood sawdust, and it comes with a one-year warranty for added peace of mind.



Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer Support and Services:

We provide technical support and services for our Wood Sawdust Dryer. Our services include:

  • 24/7 customer service
  • Full installation and maintenance services
  • Troubleshooting for any problems
  • Replacement parts and components
  • Regular check-up and scheduled maintenance


Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer Packing and Shipping:

Packaging and Shipping for Wood Sawdust Dryer

The wood sawdust dryer is carefully packaged in wooden cases for secure transportation. The cases are robust and durable, ensuring that the dryer is well-protected during shipping. The packaging also prevents the dryer from dust, moisture, and other external factors.

The dryer will be shipped by DHL, UPS, or other reliable carriers. The shipping will take 5-7 business days. It is important to inspect the package upon delivery and check for any signs of damage. In the unlikely event of damage, please contact us immediately.



Manual Control System Wood Sawdust Dryer 1000kg/H Rotary Dryer Shavings Dryer FAQ:

Q: What is the Brand Name of the Wood Sawdust Dryer?
A: The Brand Name of the Wood Sawdust Dryer is Jinzhao.
Q: What is the Model Number of the Wood Sawdust Dryer?
A: The Model Number of the Wood Sawdust Dryer is GHG.
Q: Where is the Wood Sawdust Dryer made?
A: The Wood Sawdust Dryer is made in Shandong, China.
Q: What is the Wood Sawdust Dryer used for?
A: The Wood Sawdust Dryer is used to reduce the moisture content of sawdust for making biomass fuel pellets.
Q: What is the capacity of the Wood Sawdust Dryer?
A: The capacity of the Wood Sawdust Dryer depends on the model. Please contact us for further information.
