90kw Biomass Pellet Manufacturing Plant 2ton/H Wood Pellet Plant

I'm Online Chat Now

90kw Biomass Pellet Manufacturing Plant 2ton/H Wood Pellet Plant

90kw Biomass Pellet Manufacturing Plant 2ton/H Wood Pellet Plant
90kw Biomass Pellet Manufacturing Plant 2ton/H Wood Pellet Plant 90kw Biomass Pellet Manufacturing Plant 2ton/H Wood Pellet Plant 90kw Biomass Pellet Manufacturing Plant 2ton/H Wood Pellet Plant

Large Image :  90kw Biomass Pellet Manufacturing Plant 2ton/H Wood Pellet Plant

Product Details:
Place of Origin: Shandong, China
Brand Name: Jinzhao
Model Number: XGJ560
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: suitable packing for sea freight
Delivery Time: 10-25 working days
Payment Terms: T/T

90kw Biomass Pellet Manufacturing Plant 2ton/H Wood Pellet Plant

Description
Pellet Diameter: Standard 6mm/8mm Warranty: 1 Year
Main Machine: Pellet Machine, Hammer Mill, Dryer, Cooler, Etc. Installation: Provided
Motor Power: 90kw/132kw Product Name: Complete Pellet Production Line
Raw Material: Wood, Straw, Grass, Sawdust, Etc. Capacity: 132kw-1.5-2t/h
Color: Customized Spare Parts: Die And Roller Shell
Roller Lubrication: Grease Pump Gearbox Lubrication: Circulating Lubrication Pump
Gearbox Cooling: Air-cooled Radiator
Highlight:

90kw Biomass Pellet Manufacturing Plant

,

Biomass Pellet Manufacturing Plant 2ton/H

,

2ton/H Wood Pellet Plant

1 Year Warranty Wood Pellet Production Line Biomass Materials Pellet Line

1 Year Warranty Wood Pellet Production Line Biomass Materials Pellet Line Product Description:

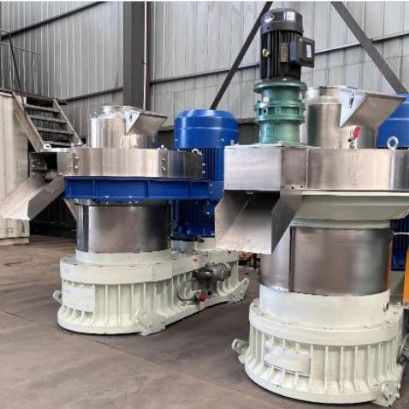

Complete Pellet Production Line is a custom-built wood pellet or biomass pellet production line which can process wood, straw, grass, sawdust and other kinds of biomass materials into pellets with high pressure and temperature. It is characterized by high capacity, reliable performance and easy installation. The main machines of the Pellet Production Line include pellet machine, hammer mill, dryer, cooler and other related machines. The advanced processing technology of high temperature and pressure ensures the pellets have superior quality and performance. It is the ideal choice for large-scale wood pellet production or biomass pellet production.



1 Year Warranty Wood Pellet Production Line Biomass Materials Pellet Line Features:


  • The pellet machine has two sets lubricating system, grease pump and circulating lubricating oil pump. The grease pump of pellet machine, which mainly lubricates two rollers in pellet machine. The circulating lubricating oil pump is mainly lubricates the pellet machine main shaft bearings and gearbox, and the material dial part. Gear box lubrication pump is equipped with flow detection and over-pressure protection, which can prevent equipment failures caused by poor lubrication effectively.
90kw Biomass Pellet Manufacturing Plant 2ton/H Wood Pellet Plant 0 90kw Biomass Pellet Manufacturing Plant 2ton/H Wood Pellet Plant 1

1 Year Warranty Wood Pellet Production Line Biomass Materials Pellet Line Technical Parameters:

Model Main Power(KW) Capacity(t/h) Weight(T) Dimension(mm)
XGJ560 Pellet Mill 90 1-1.5 4.6 2300*1300*1800
XGJ560-6th Pellet Machine 132 1.5-2 4.8 2300*1300*1850
XGJ560-7th Pellet Making Machine 132 1.5-2 5 2400*1250*1900
XGJ560-8th Pelletizing Machine 132 1.5-2 5.1 2520*1500*1770
XGJ850 Wood pellet Machine 220 2.5-3.5 13 3000*1600*2300

1 Year Warranty Wood Pellet Production Line Biomass Materials Pellet Line Applications:

The Complete Pellet Production Line from Jinzhao with model number XGJ560 is a top-of-the-line solution for producing wood pellets from different biomass materials such as wood, straw, grass, sawdust, etc. This production line includes a pellet machine, a hammer mill, a dryer, and a cooler, all of which are designed to work together to produce high-quality wood pellets. It is ideal for applications such as feed, fuel, and fertilizer production.
The Jinzhao XGJ560-6th Complete Pellet Production Line has been engineered to ensure optimal efficiency and durability. All components are made from high-quality materials and are backed by a one-year warranty. With its easy-to-operate design, this production line is ideal for both small and large-scale operations.
The Jinzhao XGJ560-6th Complete Pellet Production Line is a great solution for those looking to produce high-quality wood pellets. Its efficient design and durable components make it a great choice for any biomass pellet production line.



1 Year Warranty Wood Pellet Production Line Biomass Materials Pellet Line Support and Services:

Pre-sale service
1. Expertise and experience of our team help each client to select their most suitable pellet machine.
2. Legal logo printing or design are available.
3. Quality + Good Price + Quick Response + Reliable Service is what we are doing best to offer you.
After you choose:
1. Your machine order can be arranged to produce at the first time.
2. Empty loading running test once machine finished production.
3. Every equipment will be checked carefully before packing, take photos and video for you.
4. Shipment booking service is supported.
5. Supervise the whole process of loading.
6. Customs clearance documents will be supplied in time.
After-sale service
1. 24hours on-line service, guide you to install and operate the machines your ordered.
2. Video communication guide your local workers doing installation, commissioning and normal maintenance.
3. Engineer technician can be available to your factory to on-site guide installation, training for biomass pellet machine line and other big machines.
4. Spare parts and accessories will be supplied with good price and delivered in 7 working days.



1 Year Warranty Wood Pellet Production Line Biomass Materials Pellet Line  FAQ:

Q1. What is your payment term?
A1: T/T 30% down payment, the balance to be paid before shipment.
Q2: What is your main market?
A2: Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q3: What is your delivery time?
A3: Unit pellet machine can be done well within 7 working days. Complete line will be done with 15-50 working days, the specific time depends on the amount of equipment you purchased.
Q4: What documents you can offer?
A4: Invoice, packing list, contract for customs declaration, certificate of origin, Form E etc, If client need other documents, specifications, please confirm with service staff.
Q5: If machine have some quality problem, your solutions?
A5: If finally confirm our side machine quality problem within guarantee time, we will responsible for it. Change all the parts for free.
Q6: When can I get the quotation ?
A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
